(NS-BS2-P6S03L) Electro Mechanical Boom Barrier

(NS-BS2-P6S03L) Electro Mechanical Boom Barrier Specification

Weight
45 Kilograms (kg)

Mounting Type
Surface mount

Connectivity Type
Wired/remote

Product Type
Boom Barrier

Operating Mode
Automatic/manual

Dimension (L*W*H)
976 x 335 x 231mm (HWD) Millimeter (mm)

Color
White & Grey

Warranty
1 year

Size
340mm x 272mm x 1020mm

License Free
Yes

Temperature Range
-35 C~+65 C Celsius (oC)

Material

Technology
Electro-mechanical

Special Features
IP54 waterproof grade, stainless steel material

Remote Control
Yse

Application
Toll Plaza, Any Parking, Residential Building, Malls, Hospital

Power Supply
220V, 150W

Voltage Range
220V AC

Application Area
Parking/PT tollbooth

Remote Range
30 meters

Usage
Outdoor, high-traffic

Base Color
Black

Duty Cycle
Continuous

Ingress Protection
IP544

Power Consumption
150W

Model Number
NS-BS2-P6S03L

Control
Remote/manual switch

Safety Feature
Obstacle detection

Boom Length
6 meters

Barrier Material
Stainless steel

Opening Speed
3-6 seconds

Base Dimension
340x272mm

Finish
Anti-corrosive

Operating Temperature
-20C to 60C

(NS-BS2-P6S03L) Electro Mechanical Boom Barrier Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
100 Pieces Per Month

Delivery Time
1 Days

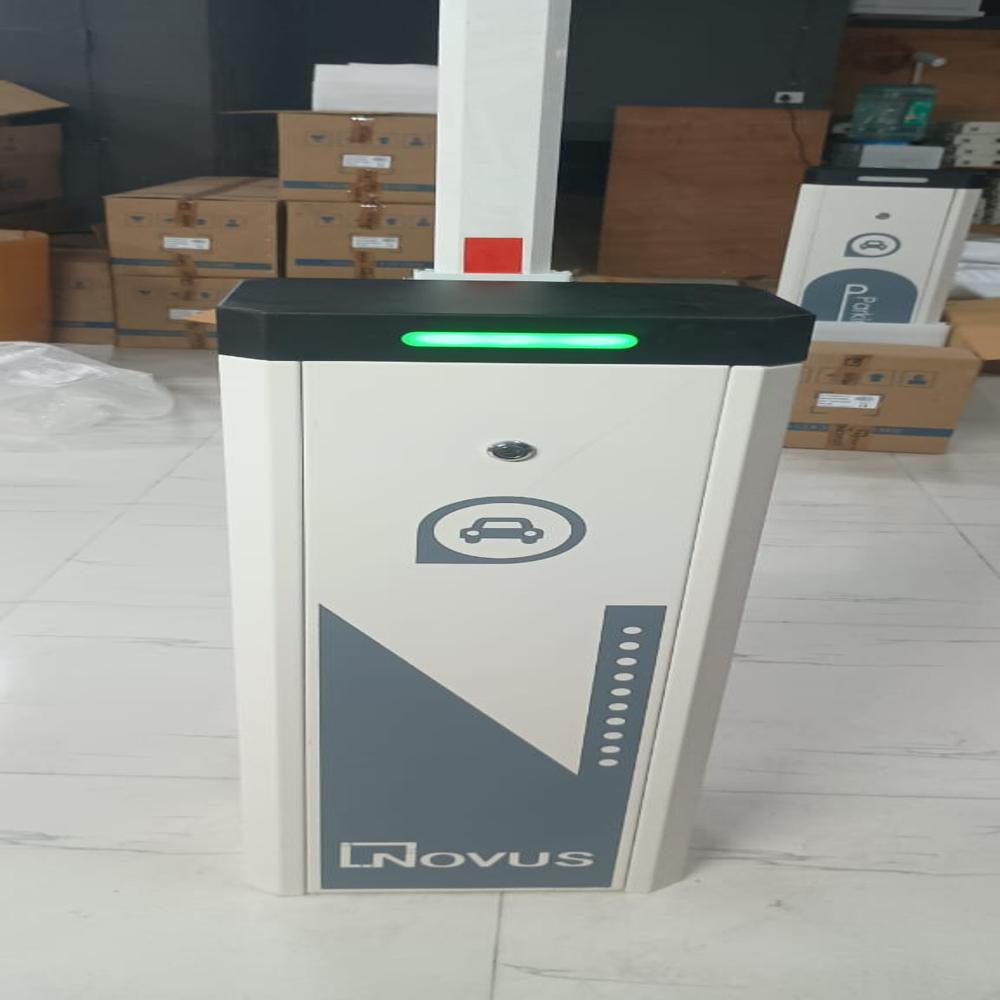

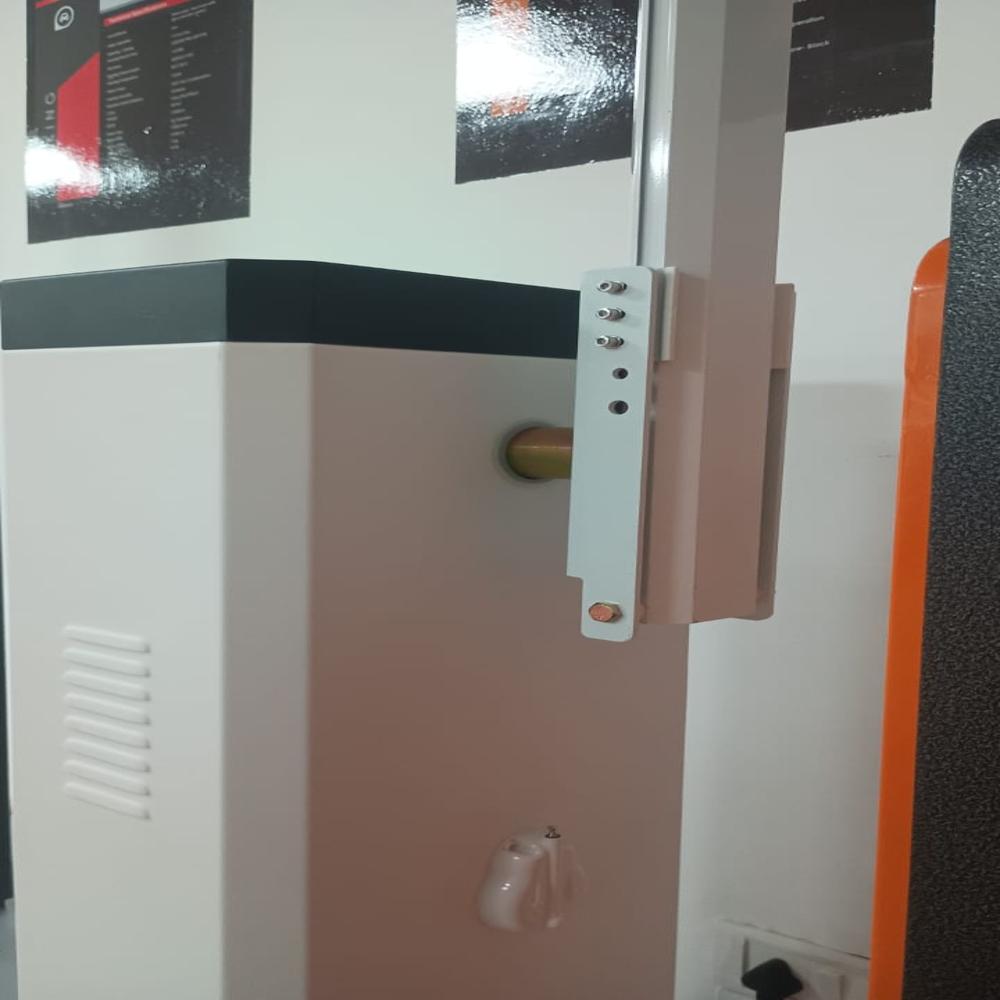

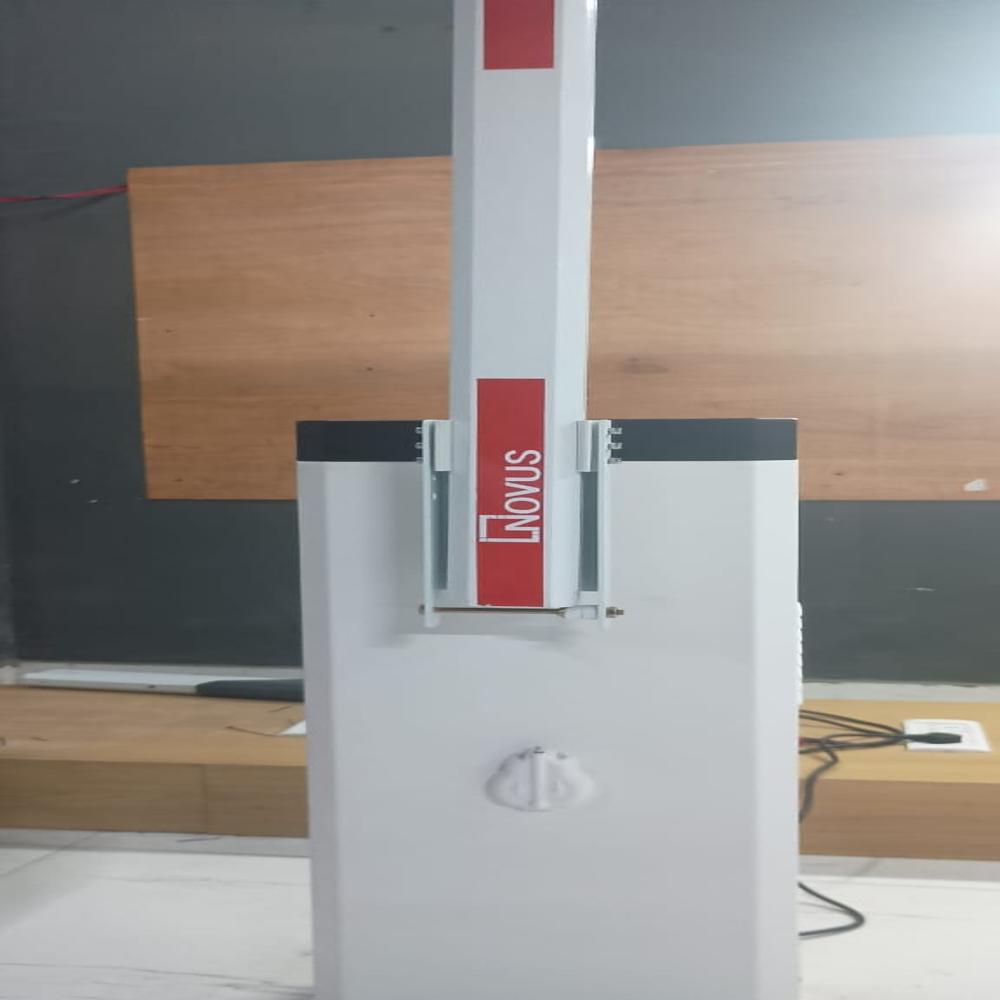

About (NS-BS2-P6S03L) Electro Mechanical Boom Barrier

ELECTROMECHANICAL BOOM BARRIER

(WITH LED TRAFFIC LIGHT)

Boom Length: Upto 6 meter

Boom Type- Straight Arm

Open/close Speed: 1.5Sec-6Sec (Configurable)

Motor Power: 150W

Driving Method: DC Brushless Motor

Torque: 56.8N.m

MCBF: 5 + Million

Power failure Action: Auto Open

Arm swing-out function: Yes

Protection Grade: IP54

Traffic Indication: Red & Green

Durable Construction for Rugged Use

Featuring a stainless steel body and anti-corrosive finish, this boom barrier is engineered to withstand harsh outdoor climates, ensuring reliability in parking lots, toll booths, and other high-traffic locations. The IP54 ingress protection rating offers assurance against water and dust, making it ideal for outdoor deployments throughout the year.

Efficient and Flexible Operation

With remote and manual control options, the barrier adapts to different operational needs, ensuring convenience for users. Its rapid opening speed (3-6 seconds) and a remote range of up to 30 meters streamline vehicle access, while the automatic/manual operating modes provide flexibility for varying traffic scenarios.

Advanced Safety and Versatility

Integrated obstacle detection prevents accidental closures, protecting pedestrians and vehicles. Suitable for a range of applications-from residential complexes to commercial spaces-the barrier supports continuous duty cycling, making it perfect for high-volume entry and exit points. Its robust electrical and mechanical components maximize uptime and security.

FAQ's of (NS-BS2-P6S03L) Electro Mechanical Boom Barrier:

Q: How is the NS-BS2-P6S03L boom barrier controlled?

A: The NS-BS2-P6S03L can be operated via remote control (with a 30-meter range) or a manual switch, offering both automatic and manual control modes depending on your requirements.

Q: What are the benefits of using this boom barrier in outdoor, high-traffic areas?

A: Its stainless steel, anti-corrosive construction and IP54 waterproof rating make the barrier highly resistant to harsh weather and frequent use, ensuring durability and reducing maintenance needs in outdoor, high-traffic settings such as parking lots, malls, or toll booths.

Q: When is it recommended to use obstacle detection technology?

A: Obstacle detection should always be enabled, particularly in high-traffic or pedestrian-rich environments, as it increases safety by preventing the boom from closing on vehicles or people.

Q: Where can the NS-BS2-P6S03L boom barrier be installed?

A: This boom barrier is suitable for a wide range of sites, including parking areas, toll plazas, malls, hospitals, and residential buildings-essentially anywhere secure vehicle access control is needed.

Q: What is the process for installing the boom barrier?

A: Installation involves surface mounting the unit on a flat surface, connecting it to a 220V AC power supply, and configuring remote or wired control systems as necessary. Professional installation is recommended to ensure correct setup and optimal operation.

Q: How does the operating temperature range affect usage?

A: With an operational range of -35C to +65C, the boom barrier performs reliably in extreme cold and heat, making it suitable for varied climates across India and other regions.
